PLANNER TYPE LATHE MACHINE

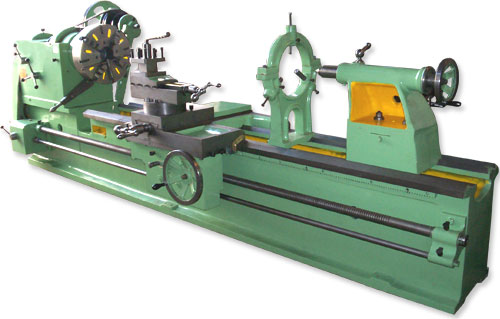

PLANNER TYPE LATHE MACHINE SERIAL NO: 2

TECHNICAL SPECIFICATIONS
Serial	MODELS OF MACHINES	Sr. No: 1	Sr. No: 2	Sr. No: 3	Sr. No: 4	Sr. No: 5	Sr. No: 6
1.	Length of Bed	8 - ½'	8 - ½'	10'	12'	22'	12'
2.	Height of Centre	14- ½"	16"	18"	24"	28"	30"
3.	Width of Bed	16"	20"	24"	30"	30"	38"
4.	Swing over Bed	29"	32"	36"	48"	56"	60"
5.	Swing Over Saddle	20"	21"	25"	37"	45"	48"
6.	Swing in Gap	42"	46"	53"	66"	74"	82"
7.	Width of Gap in front of Face Plate	10"	10"	10"	20"	20"	20"
8.	Admit between centers	50"	36"	52"	66"	162"	40"
9.	Spindle Bore	3-1/8"	4-¼"	4-¼"	4-¾"	4-¾"	5"
10.	Spindle Speeds	6	6	6	8	8	8
11.	Size of Morse Taper	3MT	4MT	4MT	4MT	5MT	6MT
12.	Pitch of Change Wheel	8DP	7DP	7DP	6DP	6DP	6DP
13.	Speed of Counter Shaft in R.P.M	240	200	200	160	160	160
14.	Dia of Lead Screw	2"	2-3/8"	2-3/8"	2- ½"	2- ½"	2-5/8"
15.	Pitch of Lead Screw	2TPI	2TPI	2TPI	2TPI	2TPI	2TPI
16.	Power Required B.H.P.	3HP	5HP	7-½ HP	10HP	15HP	25HP

NOTE: The above Machine can be supplied in different bed lengths with different admit between ecntres as given below. Other technical specifications, will remain same as given above. UMTC Lathes are available in Bridge Type as well as planner models.

Serial No. 1		Serial No. 2		Serial No. 3		Serial No. 4		Serial No. 5		Serial No. 6
Bed Length	Admit	Bed Length	Admit	Bed Length	Admit	Bed Length	Admit	Bed Length	Admit	Bed Length	Admit
10'	67"	10'	54"	12'	76"	14'	96"	24'	180"	20'	136"
12'	90"	12'	78"	14'	100"	16'	120"	26 - ½'	210"	25'	196"
14'	114"	14'	102"	16'	124"	18'	144"	28'	228"	30'	256"
16'	138"	16'	126"	18'	148"	20'	168"	30'	252"	36'	328"
		18'	150"	20'	172"	22'	192"			42'	400"
		20'	174"	22'	196"	24'	216"
				24'	220"

MACHINE TECHNICAL DESCRIPTIONS

The UMTC Extra Heavy Duty Lathes are renowned throughout the World to give maximum efficiency and reliable performance under the most severe conditions of service with minimum maintenance cost. UMTC Lathes are famous for precision jobs, accuracy and trouble free preformance.

UMTC Lathes have been designed to cater need of sustained accuracy and superb finishing.

BED: The bed being the foundation of the lathes is carefully designed and is of high grade cast iron.It has cross-ribs to support its walls and three inverted 'VEES' assembled with removable gap for large swing.

HEAD STOCK: The main spindle is of alloy steels with ground finish to give accurate results.The main spindle runs in bush or taper Roller Bearing.

SADDLE: The V ways running on the bed and the slides are most accurately hand scrapped and aligned accurately with bed and the headstock.The saddle is fitted with 'Hand' and 'Automatic Travers' along the bed with steel rack and pinion.It is assembled with cross and upper slide graduated to give desired taper turning.

TOOL-POST: The tool-post is made out of one piece steel block and can hold four different tools at a time and can be swivelled to any desired angle.

APRON: The apron gives movement to the saddle for screw cutting sliding and surfacing by means of enclosed gears and half nut. All gears are of steel.

TAILSTOCK: The tailstock is designed to give maximum strength bolt operation.It has long bearing within the barrel and ensures true alignment.

THREE SPEED GEAR BOX: The three speed gear box is provided with the lathe to obtain coarse, midium and fine cutting ranges,both longitudinal and cross on the feed bar through gears.The lead screw with accurate thread is to be used only for thread cutting and can be engaged of disengaged with a handle provided on the gear box while the other handle is for obtaining the desired three speed.

STANDARD ACCESSORIES: Supplied with the machine:- Face plate one-Catch Plate one-Centre two-Centre adopter one-Steady Rest one-Follow Rest one-One set of 23 gears-Threading dial one- Motor pully and Motor attachment.
