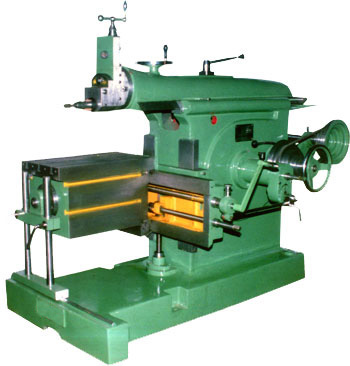

UMTC - 9  SHAPING MACHINE  SPECIFICATION TABLE

CAPACITY

Inches mm

Length of Ram Stroke

24 610

Length of Ram

50 1270

Length of Width of Ram Bearing

33 x 11 838 x 292

Max & Minimum distance from table to Ram

18 x 3 457 x 89

TABLE



Working surface of table

24 x 14 610 x 356

Max Table Travel Horizontal

24 610

Max Table Travel Vertical Angular Movement of Table on either sides

15 381

TOOL HEAD



Max. Vertical Travel of Tool Slide

6 152

Tool Head

60 L  60 R

LENGTH OF MAIN SLIDE BASE

36"

Length of Width of base

64 x 23 1600 x 585

SPEED & FEEDS



Cone Pulley Belt

4

Dia of Clutch Pulley

12"

Range of Ram speeds

4

Stroke per minute

12, 24, 48, 72

Dia of Motor Pulley

2 70

Range of Table Feed per stroke of Ram

0.009 0.229

Range of Tool Head feed

Hand Feed

DRIVE & ELECTRICAL EQUIPMENTS



Electric Motor 3 H.P. C, P.B. and 5 H.P.A.G

2 H.P. CPB 3H.P. AG

Drive Motor

1440 RPM

Main Switch Starter ( Push Button Type )

5AMP

SPECIFICATION OF VICE OVERALL DIMENSIONS & WEIGHT

12"

Length

78 1981

Width

43 1092

Height

63 1600

Weight ( Approx. )

2000 Kgs.
