"  UMT a name in Quality LATHE Machines in  INDIA ."

UNITED LATHES





ISO 9001:2008

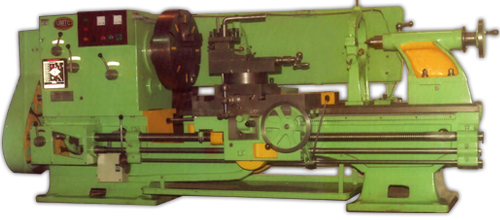

GEARED HEAD LATHE MACHINE

 SERIAL NO :- 3 GEARED HEAD LATHE MACHINE (Bridge Type)

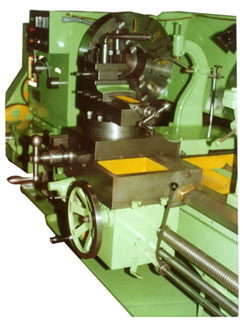

GEARED HEAD LATHE MACHINE


SERIAL NO :- 3 GEARED HEAD LATHE MACHINE (Bridge Type)



TECHNICAL SPECIFICATIONS

Serial

MODELS OF MACHINES

Sr. No: 1 Sr. No: 2 Sr. No: 3 Sr. No: 4 Sr. No: 5 Sr. No: 6
1. Length of Bed 8 - ' 8 - ' 10' 12' 22' 12'
2. Height of Centre 14- " 16" 18" 24" 28" 30"
3. Width of Bed 16" 20" 24" 30" 30" 38"
4. Swing over Bed 29" 32" 36" 48" 56" 60"
5. Swing Over Saddle 20" 21" 25" 37" 45" 48"
6. Swing in Gap 42" 46" 53" 66" 74" 82"
7. Width of Gap in front of Face Plate 10" 10" 10" 20" 20" 20"
8. Admit between centers 50" 36" 52" 66" 162" 40"
9. Spindle Bore 3-1/8" 4-" 4-" 4-" 4-" 5"
10. Spindle Speeds 6 6 6 8 8 8
11. Size of Morse Taper 3MT 4MT 4MT 4MT 5MT 6MT
12. Pitch of Change Wheel 8DP 7DP 7DP 6DP 6DP 6DP
13. Speed of Counter Shaft in R.P.M 240 200 200 160 160 160
14. Dia of Lead Screw 2" 2-3/8" 2-3/8" 2- " 2- " 2-5/8"
15. Pitch of Lead Screw 2TPI 2TPI 2TPI 2TPI 2TPI 2TPI
16. Power Required B.H.P. 3HP 5HP 7- HP 10HP 15HP 25HP


NOTE: The above Machine can be supplied in different bed lengths with different admit between ecntres as given below. Other technical specifications, will remain same as given above. UMTC Lathes are available in Bridge Type as well as planner models.


Serial No. 1 Serial No. 2 Serial No. 3 Serial No. 4 Serial No. 5 Serial No. 6
Bed Length Admit Bed Length Admit Bed Length Admit Bed Length Admit Bed Length Admit Bed Length Admit
10' 67" 10' 54" 12' 76" 14' 96" 24' 180" 20' 136"
12' 90" 12' 78" 14' 100" 16' 120" 26 - ' 210" 25' 196"
14' 114" 14' 102" 16' 124" 18' 144" 28' 228" 30' 256"
16' 138" 16' 126" 18' 148" 20' 168" 30' 252" 36' 328"
    18' 150" 20' 172" 22' 192"     42' 400"
    20' 174" 22' 196" 24' 216"
        24' 220"
