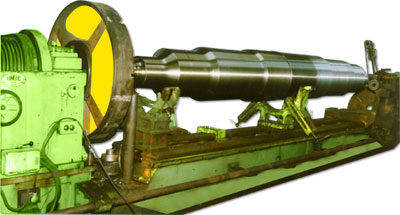

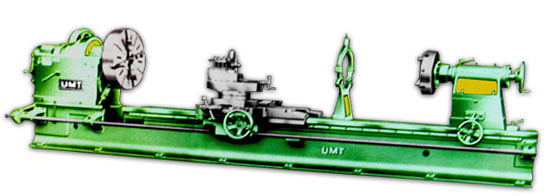

EXTRA HEAVY DUTY ROLL TURNING LATHE MACHINE



TECHNICAL SPECIFICATIONS

Serial

MODELS OF MACHINES

Sr. No: 1 Sr. No: 2 Sr. No: 3 Sr. No: 4 Sr. No: 5 Sr. No: 6
1. Length of Bed 8 - ' 8 - ' 10' 12' 22' 12'
2. Height of Centre 14- " 16" 18" 24" 28" 30"
3. Width of Bed 16" 20" 24" 30" 30" 38"
4. Swing over Bed 29" 32" 36" 48" 56" 60"
5. Swing Over Saddle 20" 21" 25" 37" 45" 48"
6. Swing in Gap 42" 46" 53" 66" 74" 82"
7. Width of Gap in front of Face Plate 10" 10" 10" 20" 20" 20"
8. Admit between centers 50" 36" 52" 66" 162" 40"
9. Spindle Bore 3-1/8" 4-" 4-" 4-" 4-" 5"
10. Spindle Speeds 6 6 6 8 8 8
11. Size of Morse Taper 3MT 4MT 4MT 4MT 5MT 6MT
12. Pitch of Change Wheel 8DP 7DP 7DP 6DP 6DP 6DP
13. Speed of Counter Shaft in R.P.M 240 200 200 160 160 160
14. Dia of Lead Screw 2" 2-3/8" 2-3/8" 2- " 2- " 2-5/8"
15. Pitch of Lead Screw 2TPI 2TPI 2TPI 2TPI 2TPI 2TPI
16. Power Required B.H.P. 3HP 5HP 7- HP 10HP 15HP 25HP


NOTE: The above Machine can be supplied in different bed lengths with different admit between ecntres as given below. Other technical specifications, will remain same as given above. UMTC Lathes are available in Bridge Type as well as planner models.

Serial No. 1 Serial No. 2 Serial No. 3 Serial No. 4 Serial No. 5 Serial No. 6
Bed Length Admit Bed Length Admit Bed Length Admit Bed Length Admit Bed Length Admit Bed Length Admit
10' 67" 10' 54" 12' 76" 14' 96" 24' 180" 20' 136"
12' 90" 12' 78" 14' 100" 16' 120" 26 - ' 210" 25' 196"
14' 114" 14' 102" 16' 124" 18' 144" 28' 228" 30' 256"
16' 138" 16' 126" 18' 148" 20' 168" 30' 252" 36' 328"
    18' 150" 20' 172" 22' 192"     42' 400"
    20' 174" 22' 196" 24' 216"
        24' 220"

MACHINE TECHNICAL DESCRIPTIONS
The UMTC Extra Heavy Duty Lathes are renowned throughout the World to give maximum efficiency and reliable performance under the most severe conditions of service with minimum maintenance cost. UMTC Lathes are famous for precision jobs, accuracy and trouble free performance.

UMTC Lathes have been designed to cater need of sustained accuracy and superb finishing.

BED: The bed being the foundation of the lathes is carefully designed and is of high grade cast iron. It has cross-ribs to support its walls and three inverted 'VEES' assembled with removable gap for large swing.

HEAD STOCK: The main spindle is of alloy steels with ground finish to give accurate results. The main spindle runs in bush or taper Roller Bearings. We manufacture lathe machines with Geared Head model also.

SADDLE: The V ways running on the bed and the slides are most accurately hand scrapped and aligned accurately with bed and the headstock. The saddle is fitted with 'Hand' and 'Automatic Travers' along the bed with steel rack and pinion. It is assembled with cross and upper slide graduated to give desired taper turning.

TOOL-POST: The tool-post is made out of one piece steel block and can hold four different tools at a time and can be swiveled to any desired angle.

APRON: The apron gives movement to the saddle for screw cutting sliding and surfacing by means of enclosed gears and half nut. All gears are of steel with Gun Metal Bushes.

TAILSTOCK: The tailstock is designed to give maximum strength. It has long bearing within the barrel and ensures true alignment. We also provide Rotary Type Tailstock for bigger Lathe Machines having provision to fix the Dog Chuck.

THREE SPEED GEAR BOX: The three speed gear box is provided with the lathe to obtain coarse, medium and fine cutting ranges, both longitudinal and cross on the feed Shaft. We also provide Full Norton Gear Box for Geared Head Models.

STANDARD ACCESSORIES: Supplied with the machine:- one-Catch Plate two Dead-Centre one-Centre adopter one-Steady Rest one-Follow Rest one- set of 23 gears ( 7 gears for geared head model )-Threading dial one- Motor pully and Motor Bracket.
